10m3 LNG Tank

Hebei Runfeng specializes in producing low-temperature storage tanks, miniature bulk storage tanks, and low-temperature welding insulated gas cylinders. With its own factory, it has an annual output of 40,000 LNG cylinders and a production capacity of over 100 million yuan for other pressure vessels. It also offers customization options.

Key word

Vertical Storage Tank Liquefied Natural Gas Tank Liquid Nitrogen Storage Tank Natural Gas Storage Tanks LNG Receiving Tanks Cryogenic Storage Tank 液态氩运输罐

Classification

Cryogenic storage tank

10m3 LNG Tank

Top

Product description

The 5m³ vertical cryogenic storage tank of Runfeng is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. It has the advantages of large reserves, low evaporation rate, safety and reliability.

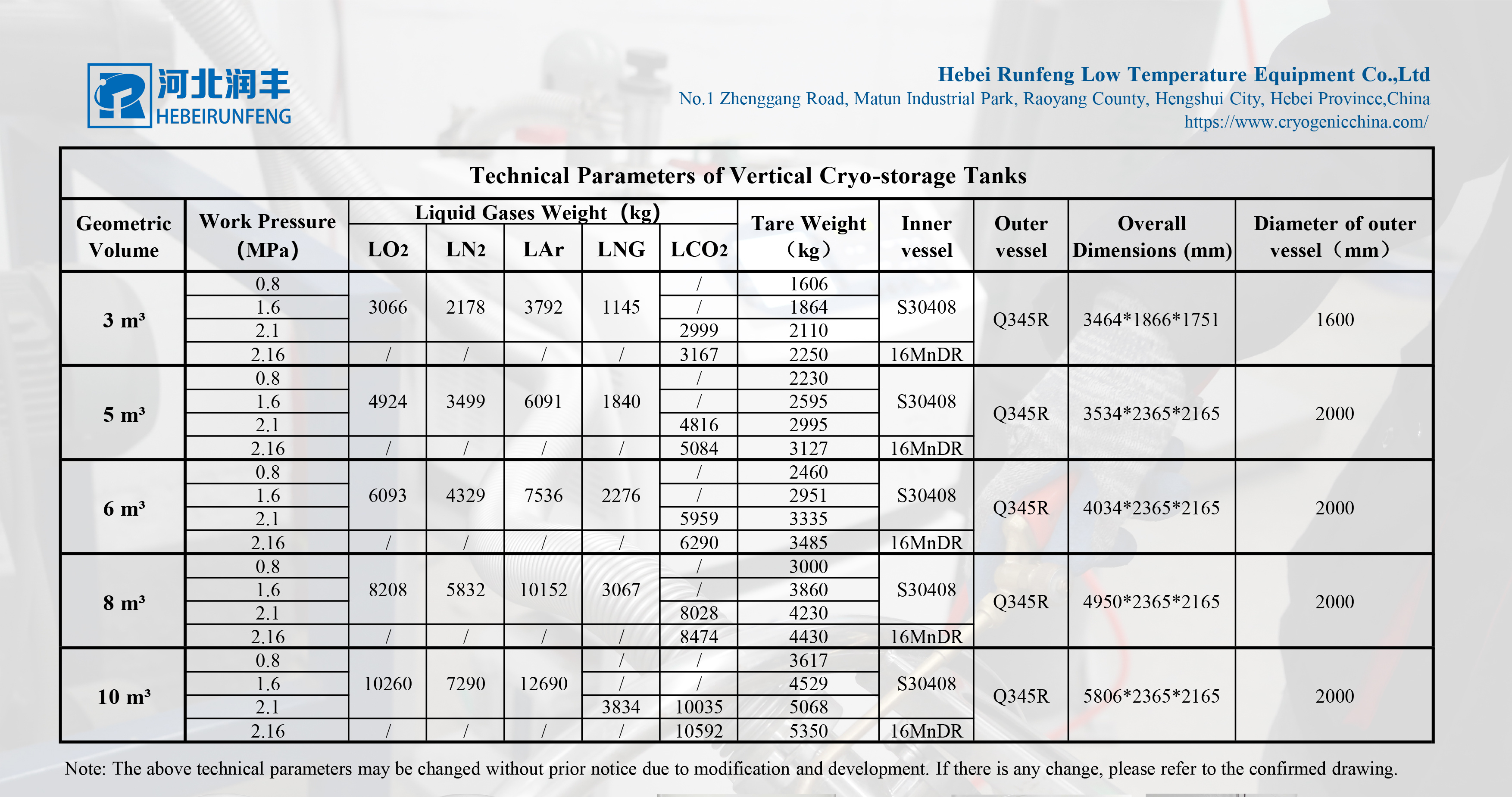

Model: 1m³- 150m³

Pressure: 0.8Mpa - 3.45Mpa

Application scenarios: medical technology, cryogenic treatment, food industry, etc

Main features

1. Customizable, providing customized services based on user needs.

2. The use of high vacuum multi-layer winding technology makes the product better thermal insulation performance and lighter quality.

3. Large reserves, low evaporation rate, safe and reliable, etc

Application area

It can be widely used in medical technology, cryogenic treatment, food industry, etc.

Production process

Company Profile

Hebei Runfeng Cryogenic Equipment Co., Ltd. is a new high-tech enterprise specializing in the design, manufacture, research and development and technical service of low-temperature pressure vessels.The company adopts the advanced production equipment at home and abroad at present, and has advanced equipment such as large hydraulic tilting plate bending machine, Italy automatic numerical control four-roller plate bending machine, automatic numerical control longitudinal seam, circumferential seam welding machine, vacuum pumping unit, numerical control winding machine, electrostatic spraying, etc.The company has advanced detection means, including helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, magnetic particle flaw detector, X-ray digital imaging system and other sophisticated advanced detection equipment.The company's leading products include liquefied natural gas cylinders for automobiles, low-temperature welding and thermal insulation cylinders, low-temperature storage tanks, DI and D2 pressure vessels and other series of products.It has an annual capacity of 40000 LNG cylinders and other pressure vessels with an output value of more than 100 million yuan.

Exhibition

Our company has been invited to participate in exhibitions at home and abroad for many times. We hope to invite you to visit and exchange with us.

Qualification certification

Packaging and transportation

Packaging: We can package according to customer requirements.

For shipment: we have an agent freight forwarder to help customers find the best freight. We recommend that customers conduct business in the form of CIF.
