The tank body is surrounded by a corner load-bearing frame for protection and hoisting, which can be used for highway, railway and water transportation.

The tank container is a stainless steel pressure vessel installed in a fastened external frame. The tank liner is mostly made of 316 stainless steel. Most tanks have inert gas protection devices, pressure relief devices and other optional equipment required for fluid transportation and handling.

Tank transportation is internationally recognized as the safest way to transport chemicals and food. In the process of distributing and transporting chemicals to different places, compared with other methods, this is a unique means of transportation that can avoid the pollution of goods.

Insulation method: high vacuum multi layer winding insulation.

Specification: 20 feet, 40 feet.

Volume: 16.6m3-40m3. Working medium: LNG, LO2, LN2, LAr, LCO2.

Working pressure: 0.7mpa-2.2mpa.

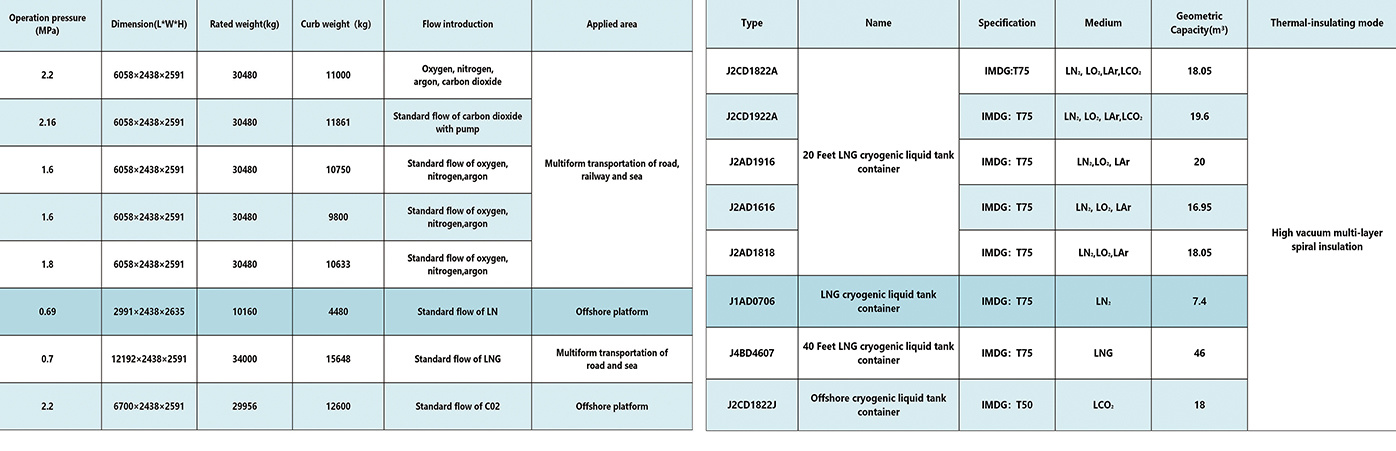

Product parameters and specifications

The data is for reference only, and the specific object shall prevail

Company Profile

Hebei Runfeng cryogenic equipment Co., Ltd. is an emerging high-tech enterprise specializing in the design, manufacturing and R & D of low-temperature pressure vessels.The company's leading products include low-temperature welded insulation bottles, low-temperature storage tanks, D1 and D2 pressure vessels. With an annual output of more than 40000 low-temperature bottles and more than 2000 storage tanks.The company has professional production and testing equipment at home and abroad, such as large-scale hydraulic tilting plate bending machine, full-automatic NC four roll plate bending machine, full-automatic NC longitudinal seam and circumferential seam welding machine, vacuum pumping unit, NC winding machine, electrostatic spraying, helium mass spectrometer leak detector, spectrum analyzer, full-automatic ultrasonic flaw detector, magnetic powder flaw detector, X-ray digital imaging system and so on.
Why choose us:Strong technical force, perfect quality assurance system. The company invests a large amount of revenue annually in the development and testing of new technologies and products. Strive for Standard Enterprise in Low Temperature Industry.

Certifications

Exhibition

Our company often participates in domestic .foreign exhibitions .if possible, we hope you can come to visited exchange.
Package And Shipping
For packing: We can packing it according to customer requirements.
For shipment: We have agent forwarder, can help customers find best freight cost, and we suggest customers do business by CIF.

无

ISO horizontal container storage tank for cryogenic storage
