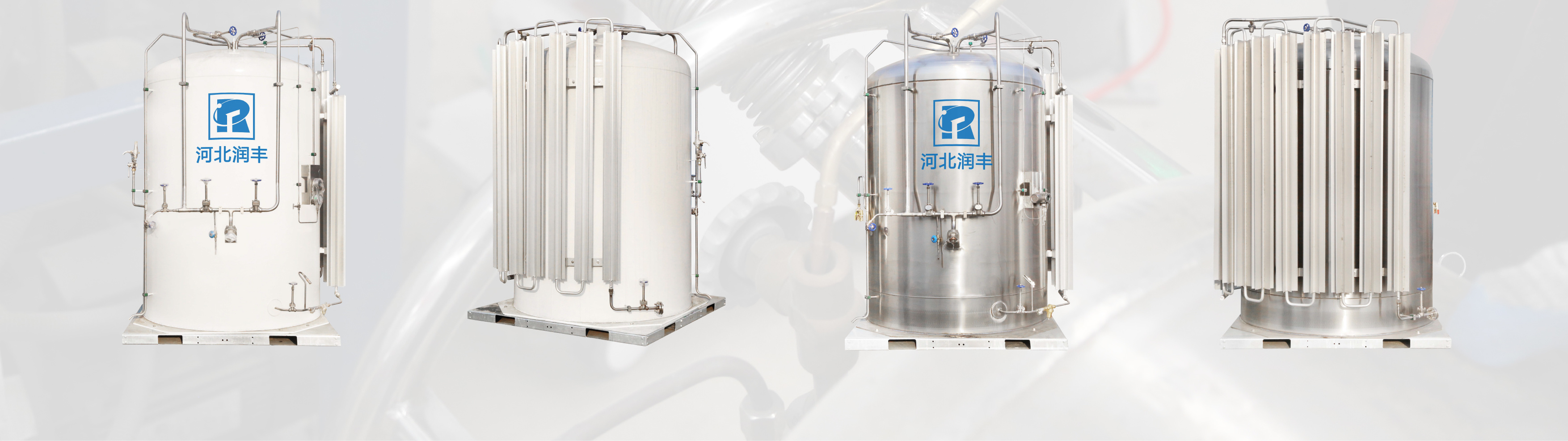

5m³ ASME Standard Microbulk Tank

Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 2M3, 3M3, 5M3and 7.5M3. The micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer.Micro tanks are pressure vessels with inner and outer container double layers structure. The inner container is made of stainless steel suspended in the outer container with supporting devices. The space between the inner container and the outer container is wrapped with heat insulated material and vacuum withdrawn. Relevant safety regulations must be complied with when installing, using or maintaining the micro tank.

Key word

Liquid Nitrogen Tank Cryogenic Liquid Storage Tank Liquid Oxygen Tank Cryogenic Storage Tank Pressure Vessel LNG Cryogenic Storage Tank Stainless Steel Storage Tank Micro Bulk Tank

Classification

Microbulk Tank

5m³ ASME Standard Microbulk Tank

Top

Product Description

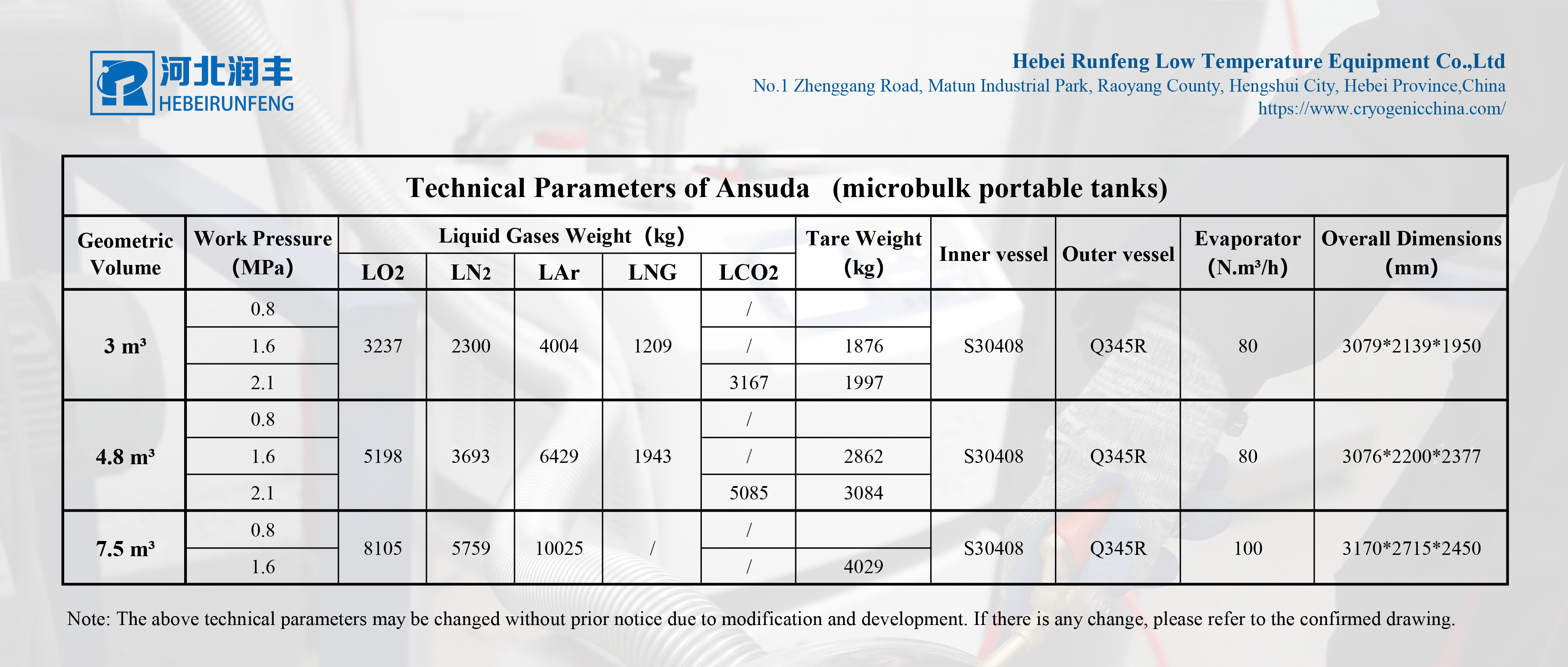

Specification

Main Features

1. The main performance index of cryogenic micro tank is not lower than the technical level of conventional fixed liquid storage tank.

2. The process adopts a structure of integrated pipeline and vessel, which is most suitable for limited space.

3. The purity of the gas can be reliably guaranteed to avoid the unstable factors of the purity of dewar.

4. Cryogenic liquid filling can be realized on site, which is a good solution to the shutdown caused by gas supply.

Application Fields

Microbulk tanks can be widely used in various industries, such as laser processing, electronics, scientific research, chemical engineering, welding, medical, food industry etc. The vessel has a compact structure with a small footprint.

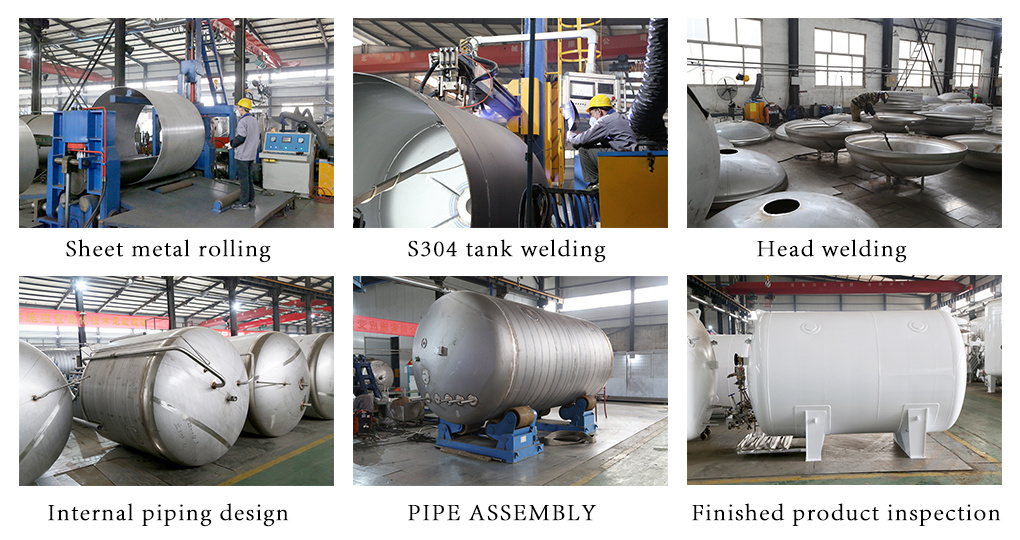

Production process

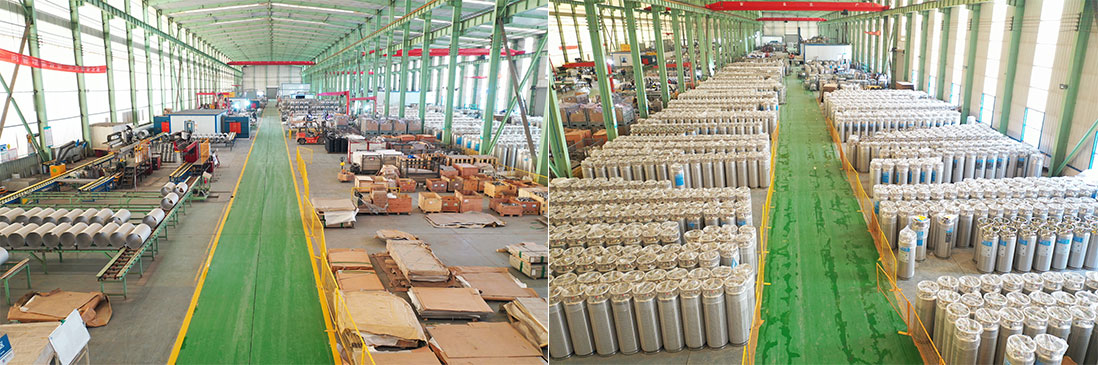

Company Profile

Hebei Runfeng Cryogenic Equipment Co., Ltd. is a new high-tech enterprise specializing in the design, manufacture, research and development and technical service of low-temperature pressure vessels.The company adopts the advanced production equipment at home and abroad at present, and has advanced equipment such as large hydraulic tilting plate bending machine, Italy automatic numerical control four-roller plate bending machine, automatic numerical control longitudinal seam, circumferential seam welding machine, vacuum pumping unit, numerical control winding machine, electrostatic spraying, etc.The company has advanced detection means, including helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, magnetic particle flaw detector, X-ray digital imaging system and other sophisticated advanced detection equipment.The company's leading products include liquefied natural gas cylinders for automobiles, low-temperature welding and thermal insulation cylinders, low-temperature storage tanks, DI and D2 pressure vessels and other series of products.It has an annual capacity of 40000 LNG cylinders and other pressure vessels with an output value of more than 100 million yuan.

Exhibition

Our company has been invited to participate in exhibitions at home and abroad for many times. We hope to invite you to visit and exchange with us.

Qualification certification

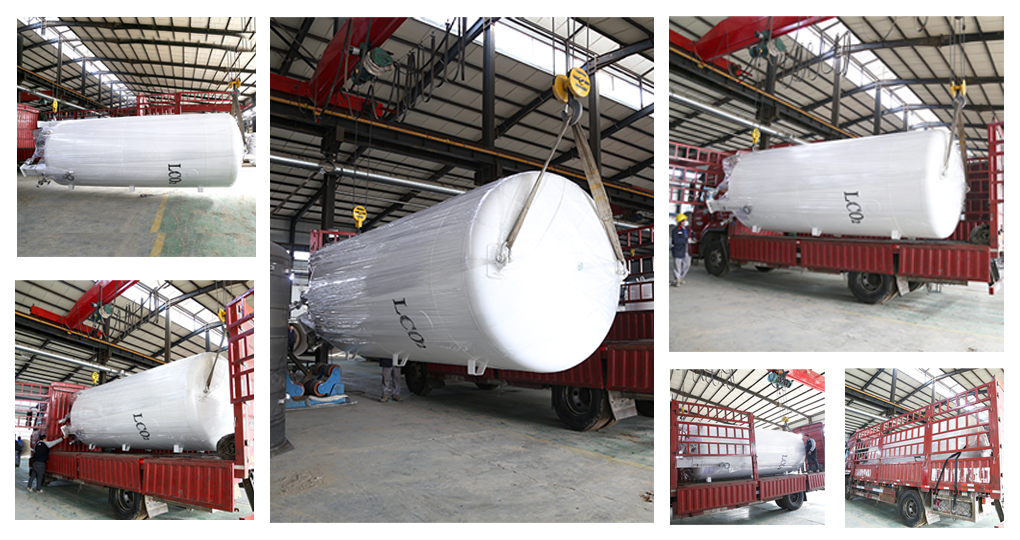

Packaging and transportation

Packaging: We can package according to customer requirements.

For shipment: we have an agent freight forwarder to help customers find the best freight. We recommend that customers conduct business in the form of CIF.
