5m³ Microbulk Tank

Microbulk Tank : Small cryogenic liquid storage tank, which is composed of tank skid, has the advantages of compact structure, low evaporation rate, small footprint, centralized control, safety and reliability, and convenient operation and maintenance. Products are suitable for various fields such as food industry, medical industry, industrial production, welding and processing. The use of high vacuum multi-layer insulation technology makes the product lighter and more convenient for customers to use.
Can be customized according to customer needs
Model: 1m³--10m³
Pressure: 0.8Mpa--3.5Mpa
Application scenarios: food processing, industrial welding, medical industry, etc.

Key word

5 Cube Ansuda

Classification

Microbulk Tank

5m³ Microbulk Tank

Top

Product Description

Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO₂, LAr, LN₂, LCO₂ and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 2M³, 3M³, 5M³and 7.5M³. The micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer.Micro tanks are pressure vessels with inner and outer container double layers structure. The inner container is made of stainless steel suspended in the outer container with supporting devices. The space between the inner container and the outer container is wrapped with heat insulated material and vacuum withdrawn. Relevant safety regulations must be complied with when installing, using or maintaining the micro tank.

runfeng

Specification

runfeng

Main Features

1. The main performance index of cryogenic micro tank is not lower than the technical level of conventional fixed liquid storage tank.

2. The process adopts a structure of integrated pipeline and vessel, which is most suitable for limited space.

3. The purity of the gas can be reliably guaranteed to avoid the unstable factors of the purity of dewar.

4. Cryogenic liquid filling can be realized on site, which is a good solution to the shutdown caused by gas supply.

Application Fields

Microbulk tanks can be widely used in various industries, such as laser processing, electronics, scientific research, chemical engineering, welding, medical, food industry etc. The vessel has a compact structure with a small footprint.

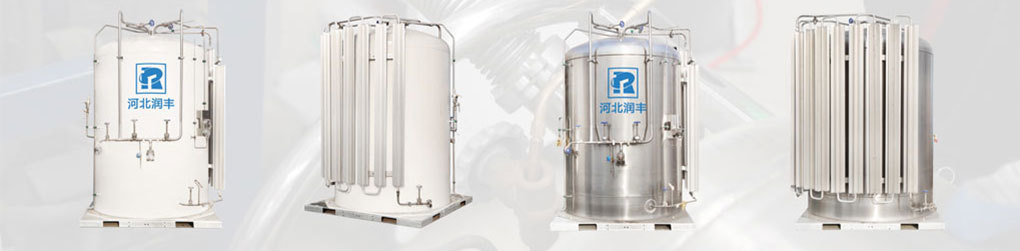

Detailed Images

RUNFENG

Company Profile

Hebei Runfeng cryogenic equipment Co., Ltd. is an emerging high-tech enterprise specializing in the design, manufacturing and R & D of low-temperature pressure vessels.The company's leading products include low-temperature welded insulation bottles, low-temperature storage tanks, D1 and D2 pressure vessels. With an annual output of more than 40000 low-temperature bottles and more than 2000 storage tanks.The company has professional production and testing equipment at home and abroad, such as large-scale hydraulic tilting plate bending machine, full-automatic NC four roll plate bending machine, full-automatic NC longitudinal seam and circumferential seam welding machine, vacuum pumping unit, NC winding machine, electrostatic spraying, helium mass spectrometer leak detector, spectrum analyzer, full-automatic ultrasonic flaw detector, magnetic powder flaw detector, X-ray digital imaging system and so on.

Why choose us:Strong technical force, perfect quality assurance system. The company invests a large amount of revenue annually in the development and testing of new technologies and products. Strive for Standard Enterprise in Low Temperature Industry.
